TEIN Type HG Coilover Kit for SUBARU IMPREZA 2.0 (GDB) AWD 2004-2007 :WRX STI (RIM P.C.D.=114.3)
See Here for Full Specification and Here for TEIN Stock Check
Front/Rear Spring Rate (kgf/mm): 4.5 / 3.5
Maximum Range of Adjustment (mm) Front = NoneMaximum Range of Adjustment (mm) Rear = None
Electronic Damping Force Controller (EDFC) compatible: NO
Type HG is designed for rally and/or dirt trail racing. It meets the demands of any road surface with its individual compression/rebound damping force adjustment, and ride height adjustment. Utilizes a twin-tube design, and is constructed with steel for additional durability on rough courses. In order to prevent aeration that can diminish performance, a unique free piston was adapted in the construction of the HG.

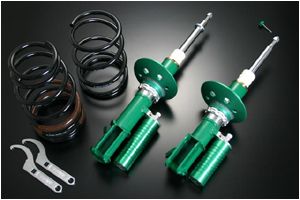

Features: ~Steel Construction for added durability ~Twin Tube internal construction ~Ride Height adjustable via adjustable spring seats ~16 × 16 way adjustable dampers, compression and rebound separately adjustable ~External reservoirs for additional oil capacity and increased stroke ~3 stage powder coat ~Some applications utilize large diameter spring seats which allows both OEM and aftermarket springs to be used ~1-year Manufacturers Defect Warranty ~Available for Overhaul Contents of Kit: ~Adjustable Shock Absorber × 4 ~Main Spring × 4 ~Upper Spring Seat Included in some applications ~Lower Spring Seat × 4 ~Seat Lock × 6(8) ~Bump Rubber × 4 ~Hook Spanner × 2 ~Instruction manual Kit Part Number = DSS68-W1LS2
