RoadNutz Rear Shackle Kit for VW Caddy III/IV (2K/SA) Including Life & Maxi - 2004 to 2020

Fits ALL VW Caddy III/IV (2K/SA) Including BiFuel/4motion - 03/2004 to 2020. Includes Panel Van, Box, Caddy Life, Tramper, Caddy Maxi and Caddy Maxi Life versions.

NOTE -  The standard kit will NOT work for vehicles that have double rear leaf springs (these are fitted to some 7-Seater and disability converted vehicles) - PLEASE CHECK - Choose option below for longer bolts to suit.

Allows Rear Lowering Adjustment Range: -50mm to -85mm

RoadNutz Rear Shackle Kit / Leaf Spring Lowering Brackets.

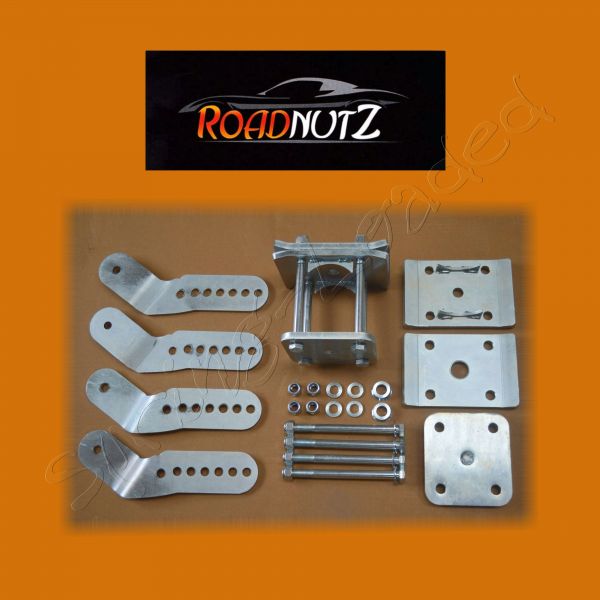

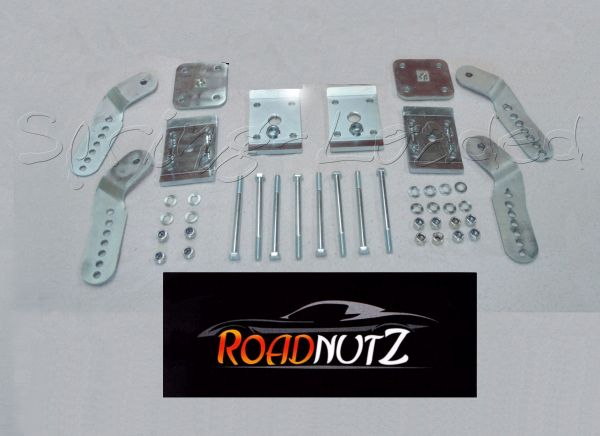

Kit contains: 4 x Leaf-Spring Hangers. 2 x Axle Clamp Kits with nuts/bolts.

To achieve lowering on the rear of your Caddy the rear axle axle needs to be mounted on top of the leaf springs, sometimes called 'axle flip'. This shackle kit is designed to do this and secure the rear axle in this new position whilst also giving the option to set the lowering amount using the holes in the shackle plates.

We recommend that this kit is only installed by a qualified vehicle mechanic preferably one with experience of using this type of lowering kit.

RoadNutz Part Number: RN-VW-CADDY2K
RoadNutz Part Number (Double Leaf Spring Kit): RN-VW-DLCADDY2K
