ProSport Rear lowering brackets / shackle kit to fit VW Caddy Mk3 & Mk4 2004-2020 This Shackle Kit Fits these VW models: Caddy Mk3 2K, made from 2004-2010 – 1.4 MPI / 1.6 MPI / 1.9 TDI / 2.0 SDI / 2.0 TDI Caddy Mk3 Facelift 2K, made from 2010-2015 – 1.2 TSI / 1.6 LPG / 1.6 TDI / 2.0 TDI Caddy Mk4 2K SA, made from 2015-2020 1.0 TSI / 1.2 TSI / 1.4 TSI / 2.0 TDI ONLY suitable for FWD models. ONLY for vehicles with single rear leaf springs, this kit will NOT work for vehicles that have double rear leaf springs (these are fitted to some 7-Seater and disability converted vehicles). Lowering amount: This Shackle Kit / Bracket Kit will lower the rear of your VW Caddy by 50-85mm M10 fitting. All steel construction.
Installation: This product must ONLY be installed by a qualified vehicle technician, preferably with experience of lowering Caddy vans using this type of kit.
Product Info: This Prosport Shackle Kit allows re-positioning of the rear axle to the top of the leaf springs (also known as an axle-flip). The heavy-duty Brackets are designed to safely secure the rear axle in its new position. This Shackle Kit comes with all the parts you need to complete the axle-flip. The Bracket Kit includes Multi-stage hangers for the rear of the leaf spring to allow you to select your preferred lowering amount.

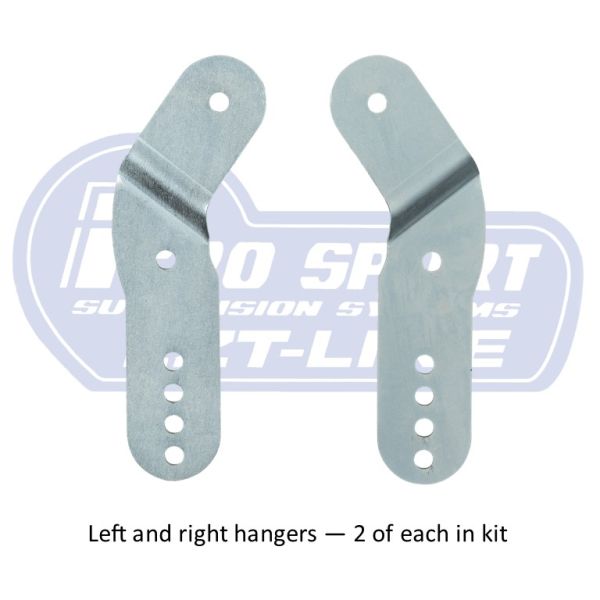

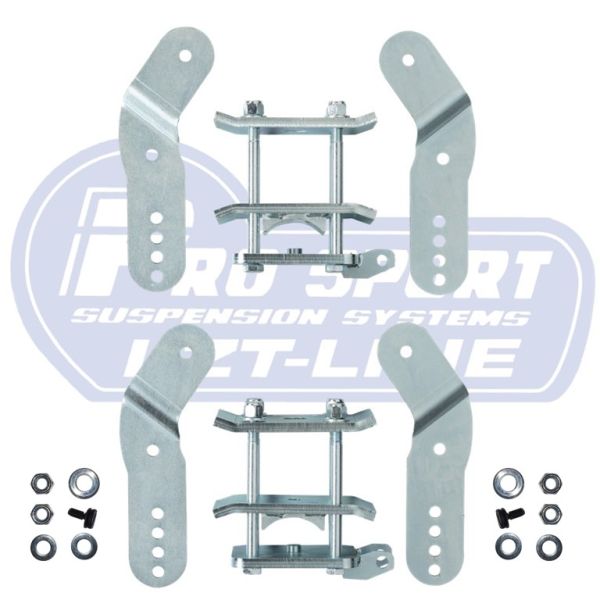

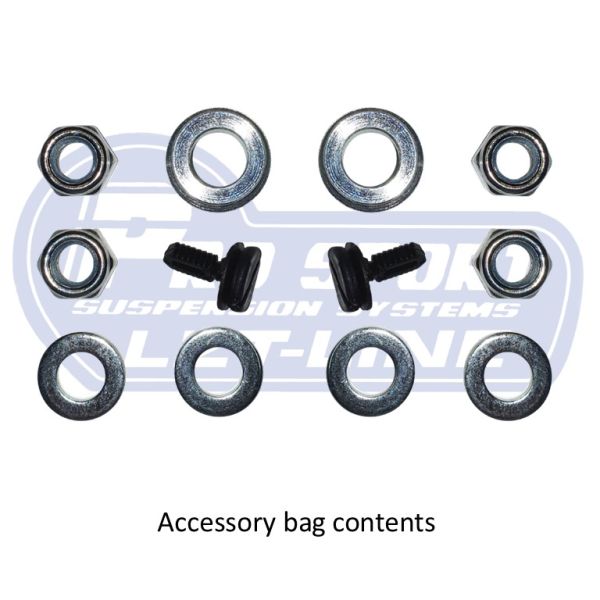

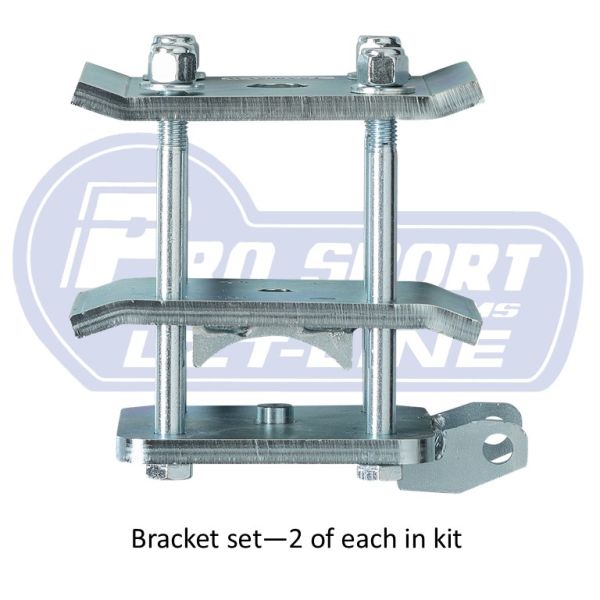

In the Box: 4 x Leaf-Spring hangers. 2 x Clamp kits with nuts/bolts Accessory pack: 2 x Shims to allow for the different sizes of rear axle locating pins 4 x Replacement nuts and washers for leaf-spring rear mounting bolts 2 x Replacement trim clips
ProSport Part Number: 150999
