ProSport Coilover Adjustment Spanner Wrench Tool Set

Description: A set of two spanners to fit the ride height adjuster rings and locking rings on a Prosport Coilover Kit. Made from mild steel.

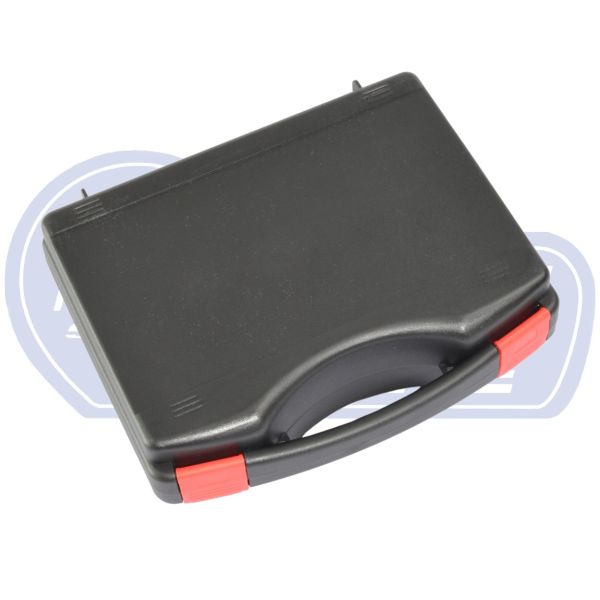

Complete with a storage case to keep the spanners safe and in good condition.

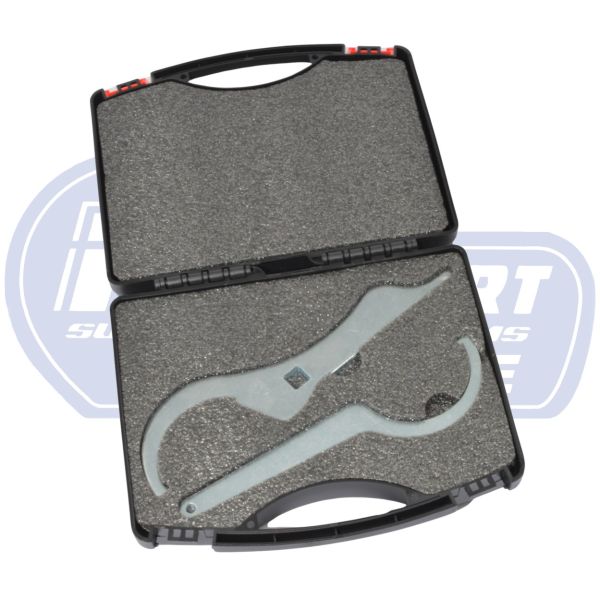

Foam lining with precision cut outs to store spanners securely.
The larger spanner has a 1/2″ Square aperture to enable use with a breaker bar.
These spanners have a slim profile for ease of use in tight spaces.
Each spanner has a variable radius for a wide compatibility range.

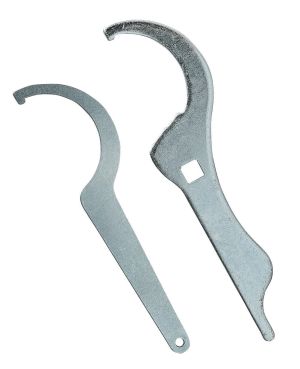

These spanners are supplied in two sizes:
The smaller spanner fits all adjuster and lock rings up to 70mm diameter.
The larger spanner fits all adjuster and lock rings up to 90mm diameter.
Overall length of tools is 230 and 263mm respectively.

Good to Know:
The lock rings don’t need to be super-tight – just enough to lock the adjuster ring.
You don’t need to use both spanners when tightening the lock rings.
Always use a copper grease on the adjuster and lock ring threads to help prevent galvanic corrosion.
Always make sure the spanners and the foam inserts in the case are dry before putting the spanners away to avoid corrosion.

ProSport Part Number: 130009
